泰克Tektronix 高压差分探头A621和A622

品牌
泰克Tektronix

型号
A621

◆ AC – 5 Hz to 50 kHz;
◆ 100 mA to 2000 A peak;
◆ For DMMs and oscilloscopes;
◆Clamp on。

分享到:

1、DS_FeaturesBenefitsContainer

  The A600 Series current probes are specifically designed to support measurements with the TekMeter® or oscilloscope.

2、Features and benefits

  A621

    ◆ AC – 5 Hz to 50 kHz

    ◆ 100 mA to 2000 A peak

    ◆ For DMMs and oscilloscopes

    ◆Clamp on

  A622

    ◆ AC/DC – 100 kHz

    ◆ 50 mA to 100 A peak

    ◆ For DMMs and oscilloscopes

3、Applications

  ◆ Motor drives

  ◆ Inverters

  ◆ Power supplies

  ◆ Avionics

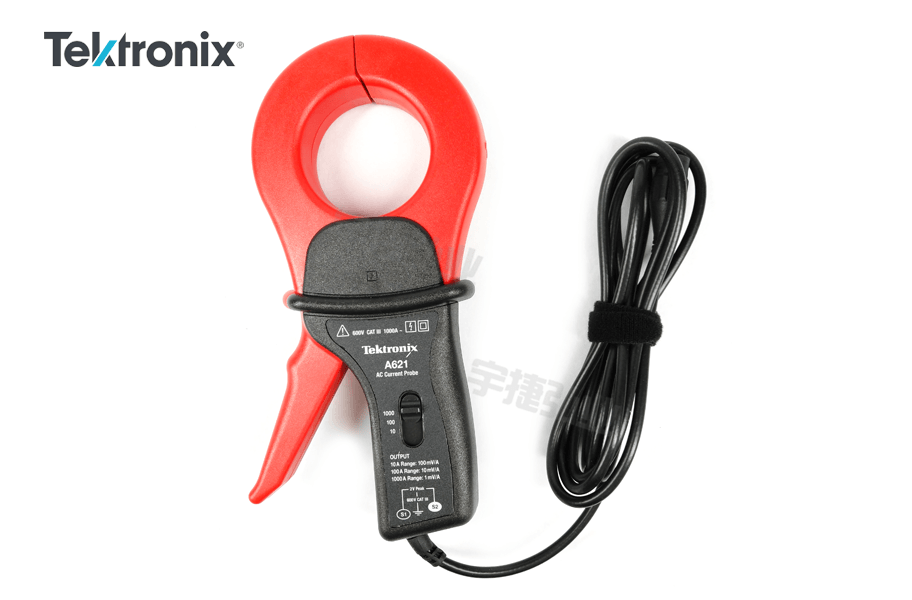

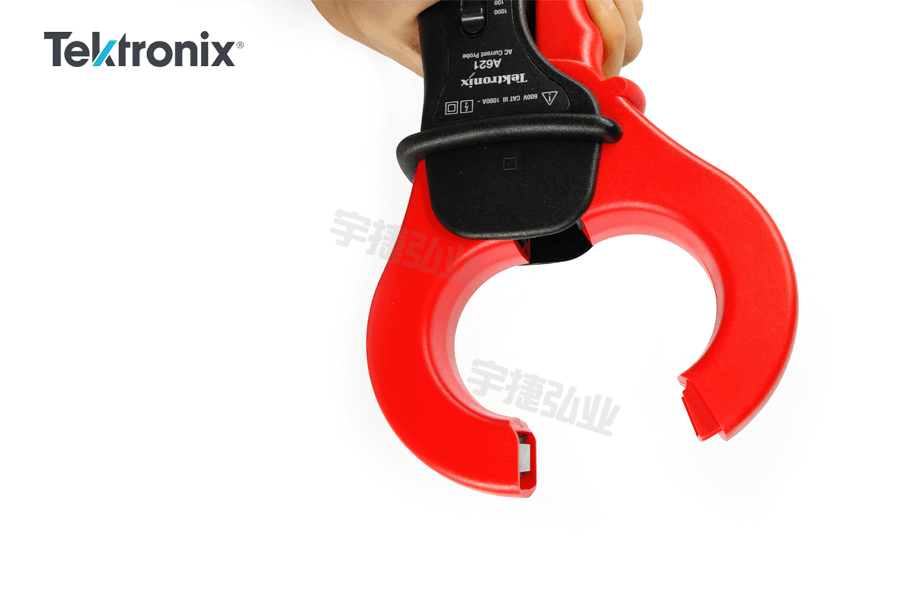

  A621 2000 Amp AC Current probe/BNC

  This industrial-style clamp-on probe has a BNC connector and can be used with a shrouded banana plug adapter 1 so it can be used on digital multimeters, TekMeter, and oscilloscopes. The A621 can measure AC currents from 100 mA to 2000 A peak over a frequency range of 5 Hz to 50 kHz. It provides a 1 mV, 10 mV, or 100 mV output for each Amp measured.

  A622 100 Amp AC DC Current probe/BNC

  This "long nose" style clamp-on probe uses a Hall Effect current sensor to provide a voltage output to oscilloscopes. It has a BNC connector and can be used with a shrouded banana plug adapter 1 so it can also be used on digital multimeters, TekMeter, and oscilloscopes. The A622 can measure AC/DC currents from 50 mA to 100 A peak over a frequency range of DC to 100 kHz. It provides 10 mV or 100 mV output for each Amp measured.

4、Recommended products

  TPS2000, TDS1000B, TDS2000C,and TDS3000C Series oscilloscopes and DMM4020 ,DMM4040,and DMM4050 digital multimeters.

Specifications

  All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.
