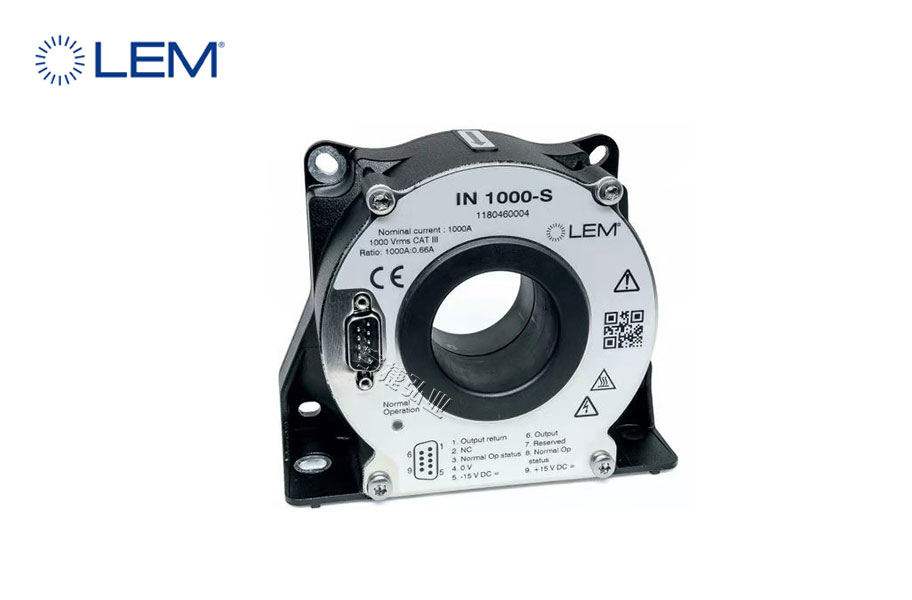

电流传感器IN1000-S莱姆LEM

品牌
莱姆LEM

型号
IN1000-S

◆ IPN=1000A

◆ Closed loop (compensated) current transducer using an extremely accurate zero flux detector

◆ 9-pin D-Sub male secondary connector.

◆ Status signal to indicate the transducer state·

◆ LED indicator confirms normal operation

欢迎垂询:137 5117 6688(微信同号)或QQ138235948

分享到:
IN1000-S

  For the electronic measurement of current: DC, AC, pulsed... with galvanic separation betweenthe primary and the secondary circuit.

  Features

  ◆ Closed loop (compensated) current transducer using an extremely accurate zero flux detector

  ◆ 9-pin D-Sub male secondary connector.

       ◆ Status signal to indicate the transducer state·

       ◆ LED indicator confirms normal operation

  ◆ Metal housing to improve immunity to EMC & power dissipation

  ◆ Operating temperature -40 C to 85°℃.

       Advantages

  ◆ Very high accuracy

       ◆ Excellent linearity

  ◆ Extremely low temperature drift.

       ◆ Wide frequency bandwidth.

       ◆ High immunity to external fields

       ◆ No insertion losses

  ◆ Very low noise on output signal

  ◆ Low noise feedback to primary conductor.

  Applications

  ◆ Feedback element in high performance gradient amplifiersfor MRl

  ◆ Feedback element in high-precision, high-stability powersupplies

  ◆ Calibration unit·

       ◆ Energy measurement

       ◆ Medical equipment.

       Standards

  ◆ EN 61000-6-2: 2005

       ◆ EN 61000-6-3: 2007

       ◆ EN 61010-1:2010.

       Application Domain

       ◆ Industrial

  ◆ Laboratory

       ◆ Medical.

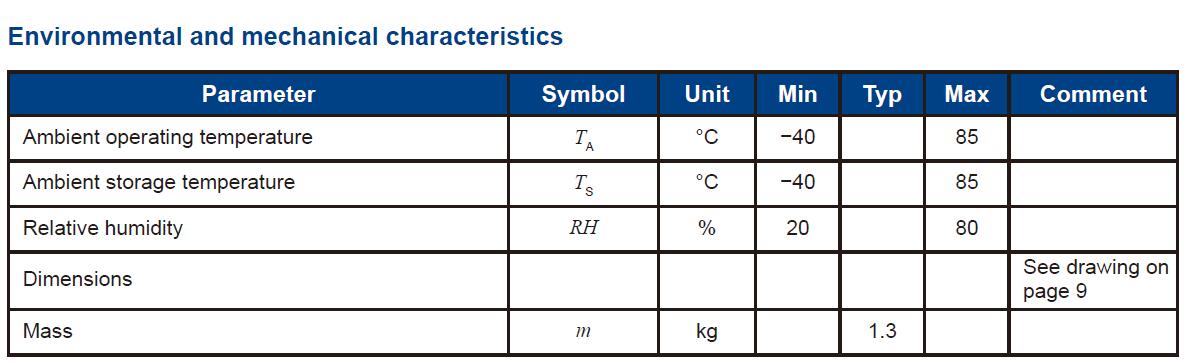

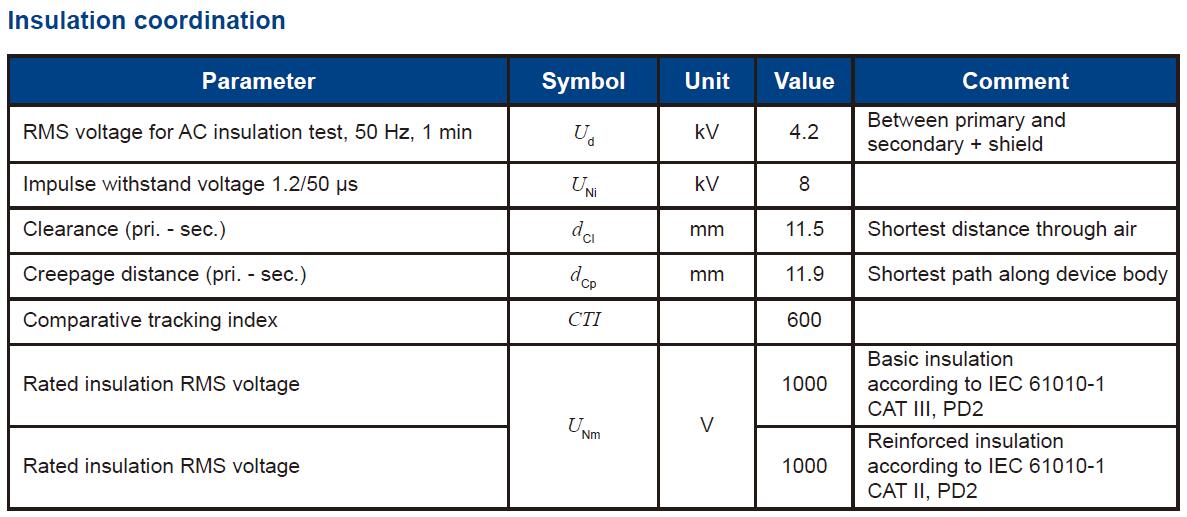

莱姆LEM 电流传感器IN1000-S规格参数

宇捷弘业IN1000-S规格参数1宇捷弘业IN1000-S规格参数2
