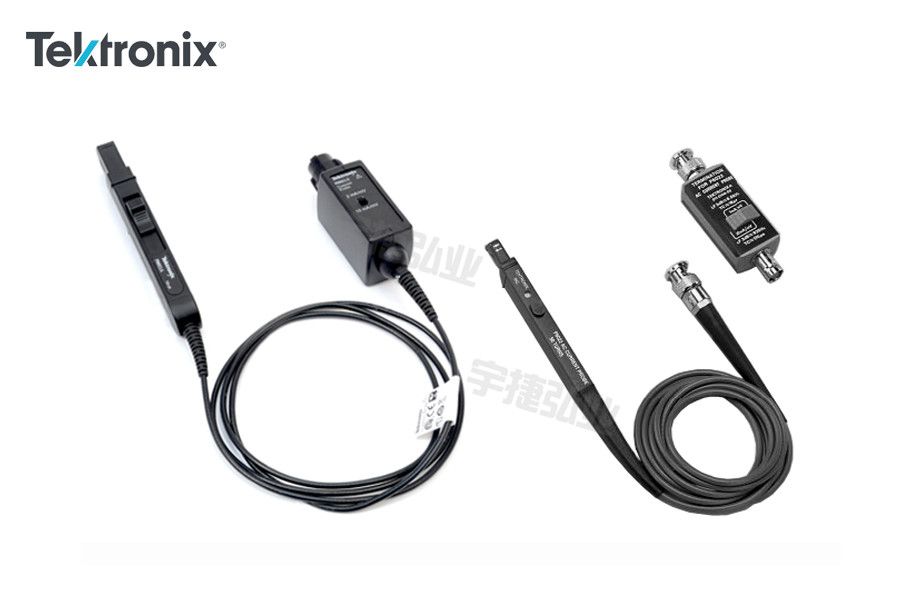

泰克Tektronix 交流电流探头P6021A和P6022

品牌
泰克Tektronix

型号
P6021A

◆ For 1 MΩ inputs;
◆ Shielded probe head;
◆ AC only;
◆ Split core construction allows easy circuit connection;
◆ 1.5 m (5 ft) cable。

分享到:
P6021A

  The P6021 and P6022 Current Probes provide versatile AC current measurements. Both probes provide accurate current measurements over a wide range of frequencies. The P6021 and P6022 allow current measurements without breaking the circuit by clipping onto the current carrying conductor. Shielded probe heads are not grounded when the slides are in their open positions, eliminating accidental grounding of the circuit under test.

Key performance specifications

  P6021A

  ◆ 120 Hz to 60 MHz

  ◆ 10.6 A RMS, 250 A peak, 10 mA sensitivity

  P6022

  ◆ 935 Hz to 120 MHz

  ◆ 4 A RMS, 100 A peak, 1 mA sensitivity

Key features

  ◆ For 1 MΩ inputs

  ◆ Shielded probe head

  ◆ AC only

  ◆ Split core construction allows easy circuit connection

  ◆ 1.5 m (5 ft) cable

Applications

  ◆ Motor drives

  ◆ Power inverters/converters

  ◆ Power supplies

  ◆ Avionics

  P6021A

  For general purpose applications, the P6021A provides wide-band performance with excellent low-frequency characteristics. Bandwidth is 120 Hz to 60 MHz. The probe range is switchable between 2 mA/mV and10 mA/mV.

  P6022

  With a head size of 0.47 in. x 0.25 in. (10 mm x 6 mm, about half the size of the P6021A) and a bandwidth of 935 Hz to 120 MHz, the P6022 is ideal for measuring currents in compact, high-performance circuits. Passive termination output is switchable between 1 mA/mV and 10 mA/mV.

Specifications

  All specifications apply to all models unless noted otherwise.

Physical characteristics

  Cable length:1.5 m (59 in)

  P6021A probe head

  ◆ Length:20 cm (7.77 in)

  ◆ Width:16 mm (0.625 in)

  ◆ Height:32 mm (1.25 in)

  ◆ Maximum conductor diameter:5 mm (0.197 in)

  P6022 probe head

  ◆ Length:152 mm (6.0 in)

  ◆ Width:6.4 mm (0.25 in)

  ◆ Height:12 mm (0.47 in)

  ◆ Maximum conductor diameter:2.8 mm (0.11 in)

EMC environment and safety

  Compliance:CAN/CSA-C22.2 No. 61010-1

                         CAN/CSA-C22.2 No. 61010-2-032

                         UL 61010-1

                         UL61010B-2-032

                         EN 61010-1

                         EN 61010-2-032
