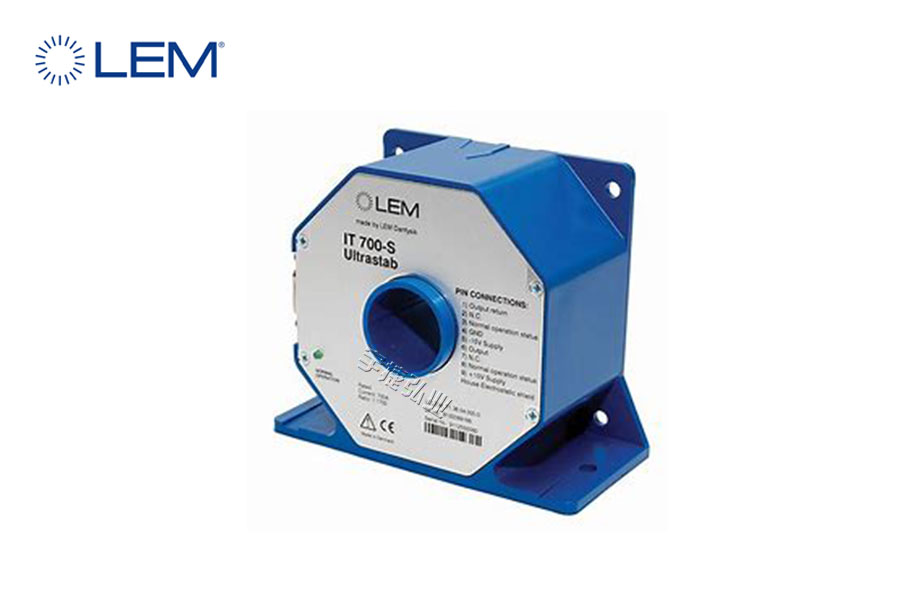

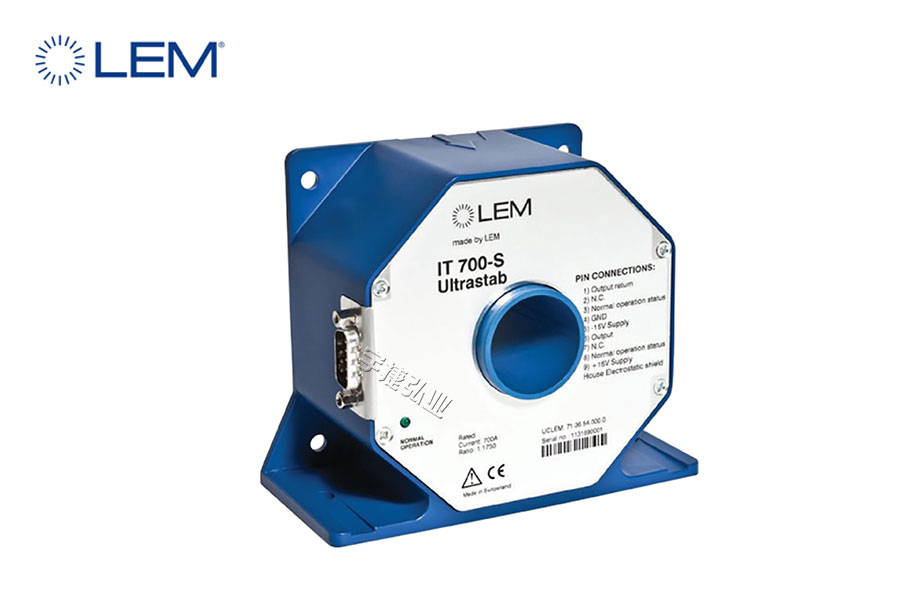

莱姆LEM电流传感器IT 700-S

　　For ultra-high precision measurement of current: DC, AC, pulsed……，with galvanic separation between primary and secondary.

　　Features

　　◆ Closed loop (compensated) current transducer using an extremely accurate zero flux detector

　　◆ Electrostatic shield between primary and secondary circuit

　　◆ 9-pin D-Sub male secondary connector

　　◆ Status signal to indicate the transducer state.

　　◆ LED indicator confirms normal operation.

　　Advantages

　　◆ Very high accuracy

　　◆ Excellent linearity

　　◆ Extremely low temperature drift

　　◆ Wide frequency bandwidth

　　◆ High immunity to external fields

　　◆ No insertion losses

　　◆ Low noise on output signal

　　◆ Low noise feedback to primary conductor.

　　Applications

　　◆ Feed back element in high performance gradient amplifiers for MRI

　　◆ Feedback element in high-precision, high-stability power supplies

　　◆ Calibration unit

　　◆ Energy measurement

　　◆ Medical equipment.

　　Standards

　　◆ EN 61000-6-2: 2005

　　◆ EN 61000-6-3: 2007

　　◆ EN 61010-1:2010.

　　Application Domains

　　◆ Industrial

　　◆ Laboratory

　　◆ Medical.
